  • 3 tons Valin hydraulic truck crane

3 tons Valin hydraulic truck crane

1000.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Main parameters *3 tons Valin hydraulic truck crane* Overall dimensions 5995*2200*2950mm Truck

          MAIN PARAMETERS
          *3 tons Valin hydraulic truck crane*

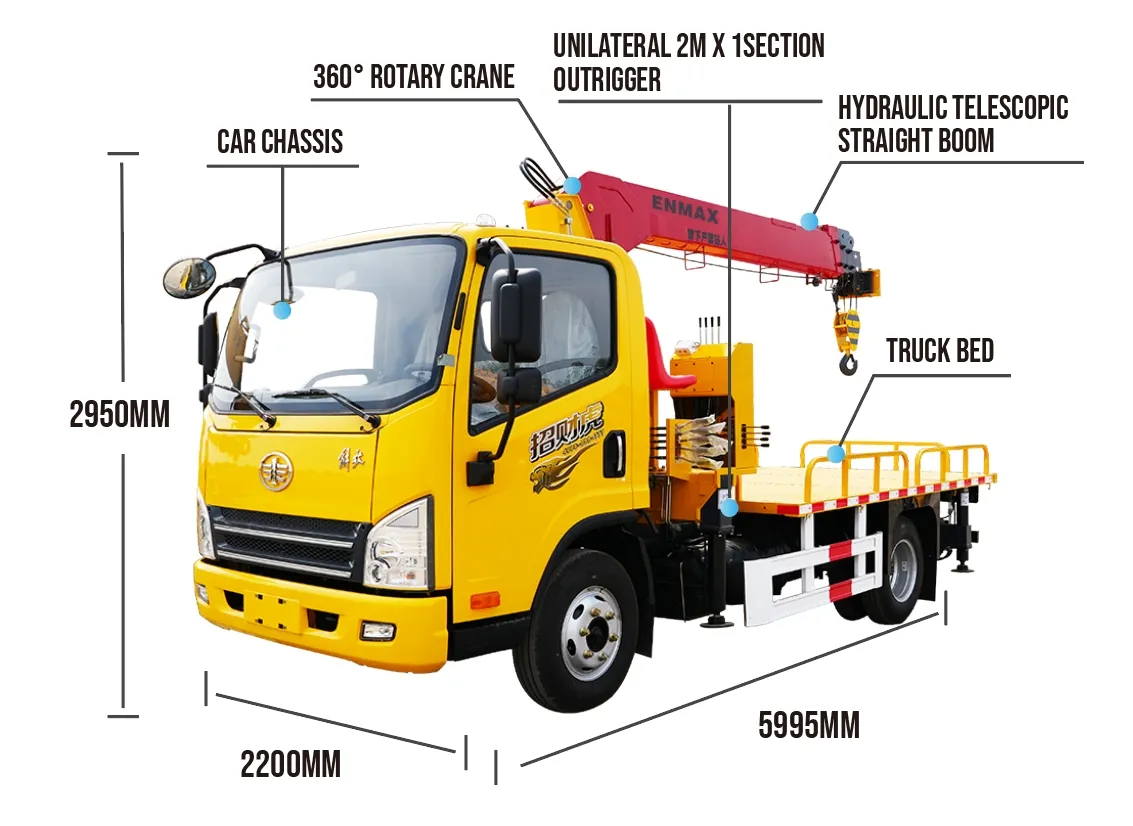

          Overall dimensions 5995*2200*2950mm
          Truck bed dimensions 3300*2200mm
          Wheelbase 3300mm
          Max. weight (full load) 4495kg
          Truck mounted crane weight 4300kg
          CHASSIS
          Chassis model Valin
          Gearbox model Wanliyang 6-speed transmission
          Engine Brand Yunnei
          Engine power 140hp/103kw
          Operation mode Dual control
          Slewing structure dimensions 14 inch
          Max. speed 95km/h
          Front/Rear suspension 1115/1580mm
          Approch/Departure angle 20°/15°
          Rear axle Press-welding axle
          Fuel tank capacity 70L
          Tyre 700R16LT 8PR
          Pump Single pump

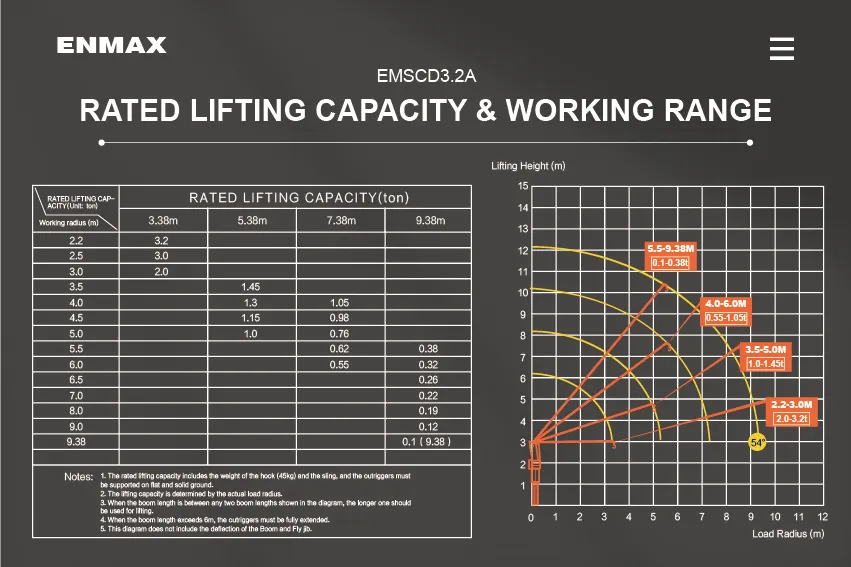

          LIFTING & SLEWING SYSTEM
          Max. lifting weight 3200kg
          Max. lifting height 11.5m
          Max. elevation angle 75°
          Boom 3m x 4 sections
          Boom slewing angle 360°
          Max. working height 12.5m
          Working platform dimensions 1500*700*1100mm
          Platform slewing range ±180°
