30m Aerial Work Vehicle

1000.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Optional configuration: upper air conditioning, lower air conditioning, weighing device, torque limiter, wireless camera, hanging
          basket, air cushion seat

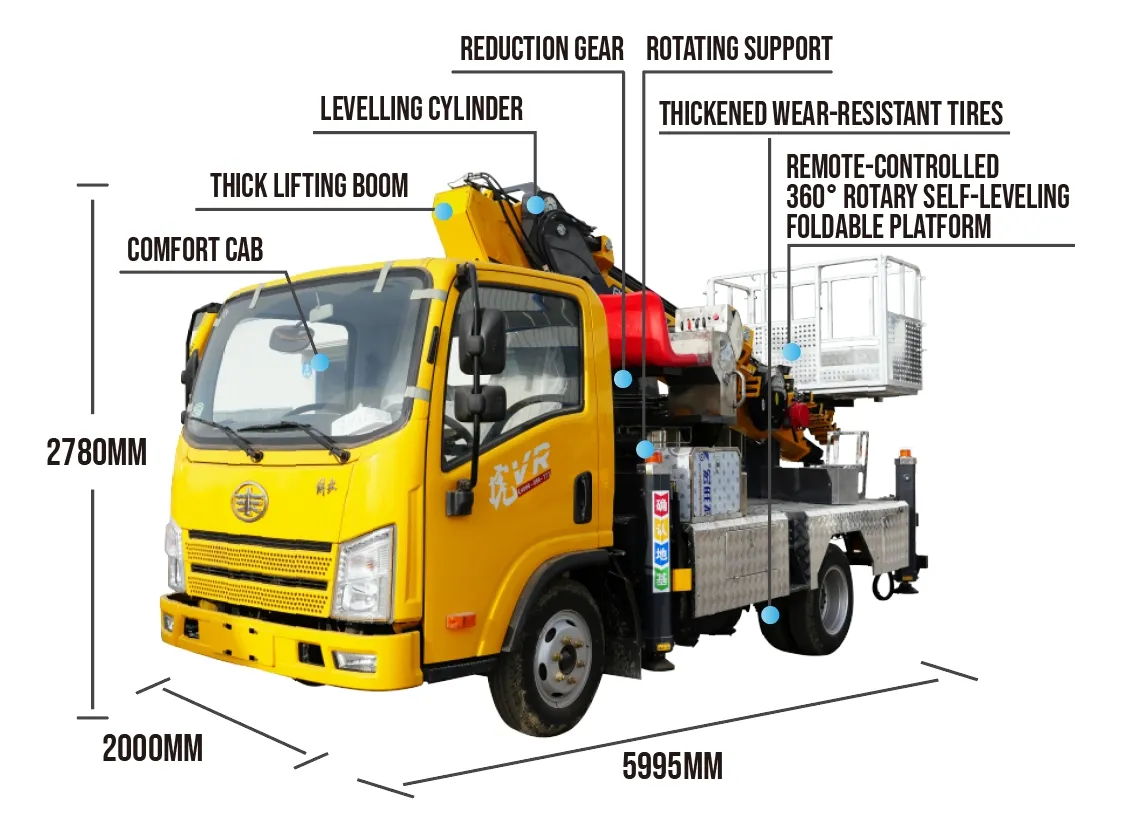

          Product features: Equipped with a central rotator, the turntable can rotate 360 degrees at will. Equipped with a planetary
          reduction mechanism, the rotation is faster and smoother. Equipped with a hydraulic heat dissipation system to reduce oil
          temperature and improve efficiency; The driving is equipped with high and low speeds, steering wheel assistance, and air brake,
          making driving the vehicle easier and more flexible.

          Jiaqing Heavy Industry’s self-made 6T configuration table
          Brand
          JQDC
          Rotary mechanism
          Secondary planetary
          steering
          Chassis Model
          Made by the manufacturer
          Outrigger
          5 fully hydraulic
          outriggers
          total mass
          7100KG
          Outrigger span (transverse)
          4950mm
          Full crane size
          6100*1950*2600mm
          Outrigger span (longitudinal)
          3800mm
          wheelbase
          2100mm
          Protective devices
          two-way hydraulic lock
          Maximum rated lifting
          capacity
          6000kg
          Work lights
          two
          maximum lifting height
          21m
          hydraulic pump
          single pump
          engine model
          4102motor
          Dual use of oil and electricity
          11KW-6 pole copper core motor
          power
          64KW
          Rotation radius
          1.7m
          horsepower
          90 horsepower
          Frame size
          300mm*150mm
          gearbox model
          Wanliyang gearbox (high
          and low speed)
          top of posterior displacement
          standard configuration
          tire
          750-16
          Lifting operation mode
          Pushrod operation
          brake system
          Air brake（ABS）
          Rod output form
          Synchronous scaling
          Steering mechanism
          Hydraulic directional
          assistance
          Type of boom structure
          4m * 7 section arm
          Main lifting mechanism
          8 ton winch
          Big arm size
          500mm*300mm


          Slewing bearing
          1.05 meter turntable
