35M Hydraulic Aerial Work Vehicle

1000.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Optional configuration: upper air conditioning, lower air conditioning, weighing device, torque limiter, wireless camera, hanging
          basket, air cushion seat

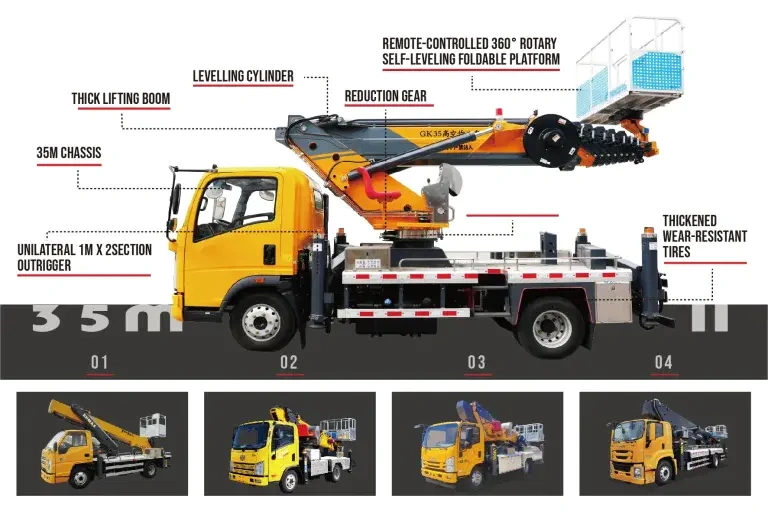

          Product features: Equipped with a central rotator, the turntable can rotate 360 degrees at will. Equipped with a planetary
          reduction mechanism, the rotation is faster and smoother. Equipped with a hydraulic heat dissipation system to reduce oil
          temperature and improve efficiency; The driving is equipped with high and low speeds, steering wheel assistance, and air brake,
          making driving the vehicle easier and more flexible.

          EMGK35 Aerial Work Vehicle
          Announcement model YAD5043JGKQL6
          Total mass 4495KG
          Engine Dewei120hp
          Wheel base 3360mm

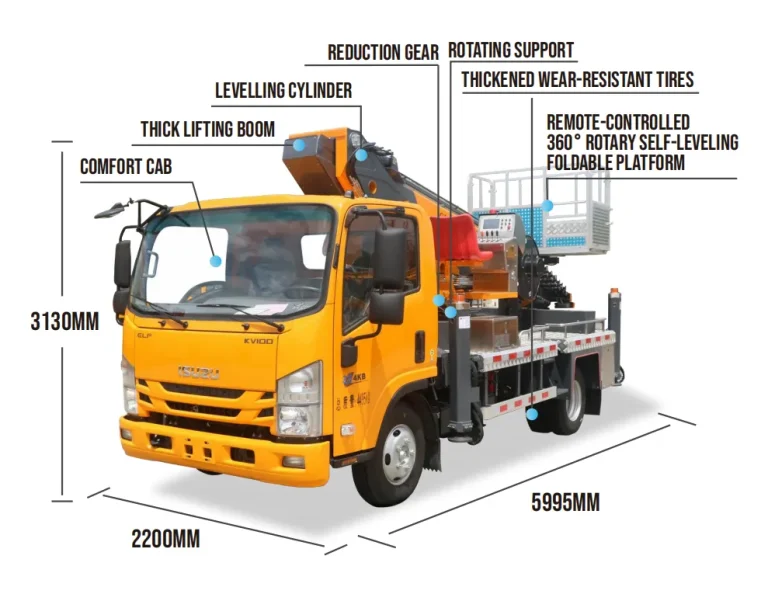

          Outline dimension 5995mm*2290mm*3120mm
          Cyre 7.00RI6LT
          Brake Pneumatic brake
          Other air conditioner/Electric doors and Windows/Central control lock / 120Lfuel tank
          Maximum operation height 33.3m
          Maximum range of work 18m
          Rated load of platform 200kg
          Arm frame rotation Angle 360°
          Platform size 1600*700*1100(mm)Small platform with load
          Platform rotation range 360°
          Big arm 9-section boom
          Baosteel 960
          Operating system Well-known electronic control system
          Wireless remote control/Tripartite operation
          Hydraulic pressure system Stepless speed regulating electro-hydraulic proportional valve
          Equipped with emergency power source
          Hydraulic leg 4 legs, H-shaped, individually adjustable
          Walkway board Steel anti slip walkway board
          Safety Device Interlocking of boarding and alighting, emergency power source,
          bidirectional hydraulic balance valve, soft leg protection
          Remarks Optional D20TCIF64 Dewei 120 horsepower Engine (Sino German joint venture)
          Optional oil brake chassis, standard 650R15 steel wire tires
