60M Hydraulic Aerial Work Vehicle

1000.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Optional configuration: upper air conditioning, lower air conditioning, weighing device, torque limiter, wireless camera, hanging
          basket, air cushion seat

          Product features: Equipped with a central rotator, the turntable can rotate 360 degrees at will. Equipped with a planetary
          reduction mechanism, the rotation is faster and smoother. Equipped with a hydraulic heat dissipation system to reduce oil
          temperature and improve efficiency; The driving is equipped with high and low speeds, steering wheel assistance, and air brake,
          making driving the vehicle easier and more flexible.

          EMGK60 Aerial Work Vehicle
          Wheel base 5550mm

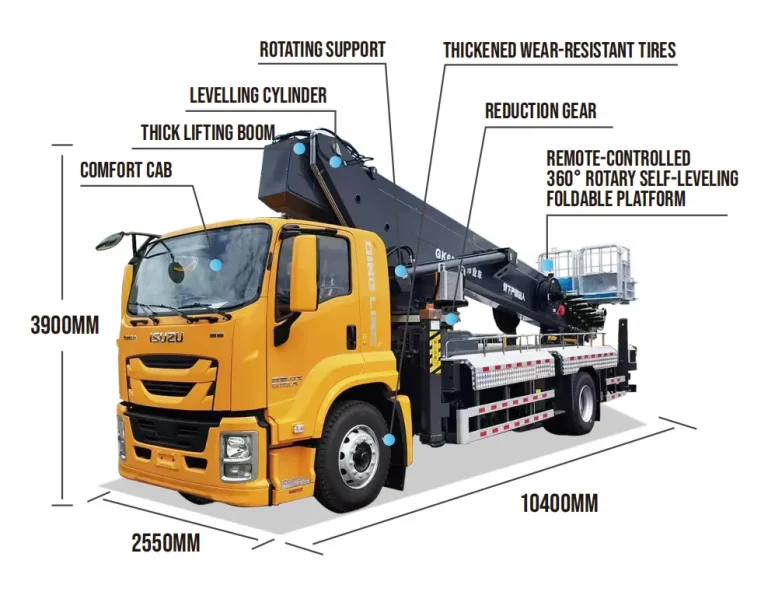

          Outline dimension 10400mm*2550mm*3900mm
          Cyre 295/80R22.5 18PR
          Brake Pneumatic brake
          Other Air conditioning, steering assistance, electric door control, central locking, multifunctional steering wheel

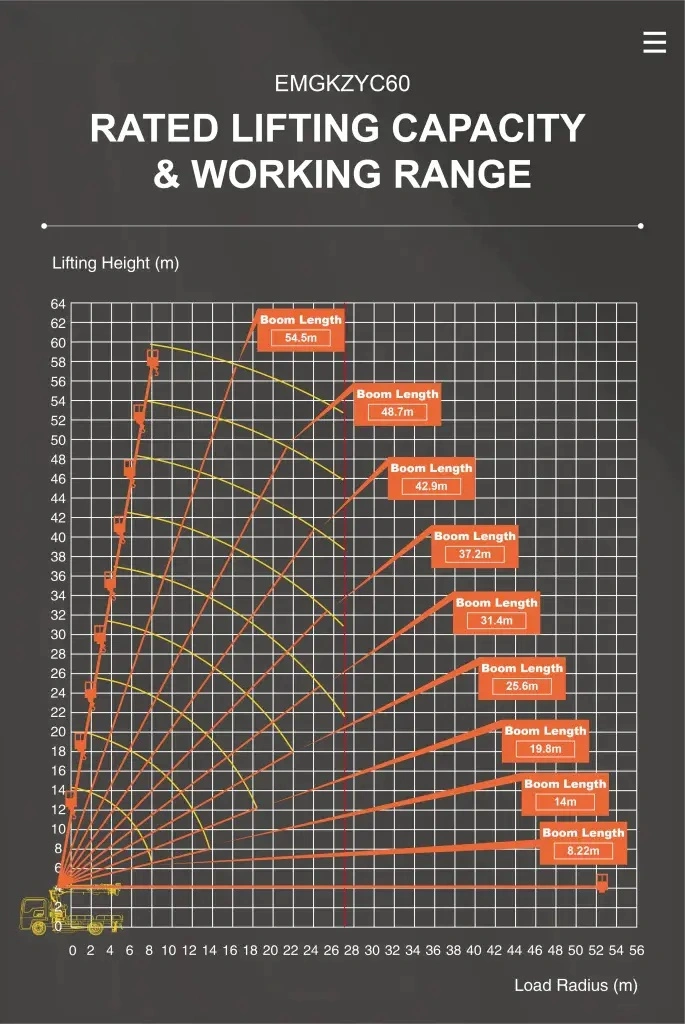

          Maximum operation height 60m
          Maximum range of work 27m
          Rated load of platform 400kg
          Arm frame rotation Angle 360°
          Platform size 3200mm*1000mm*1100mm
          Platform rotation range 360°
          Big arm 9-section boom
          Baosteel 960
          Operating system Well-known electronic control system
          Wireless remote control/Tripartite operation
          Hydraulic pressure system Stepless speed regulating electro-hydraulic proportional valve
          Equipped with emergency power source
          Hydraulic leg 4 legs, H-shaped, individually adjustable
          Walkway board Steel anti slip walkway board
          Safety Device Interlocking of boarding and alighting, emergency power source, bidirectional hydraulic balance valve, soft leg protection
