12 tons Dongfeng hydraulic truck crane

75600.00
108000.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Main parameters *12 tons Dongfeng hydraulic truck crane* Overall dimensions 12000*2500*3950mm Truck

          MAIN PARAMETERS
          *12 tons Dongfeng hydraulic truck crane*

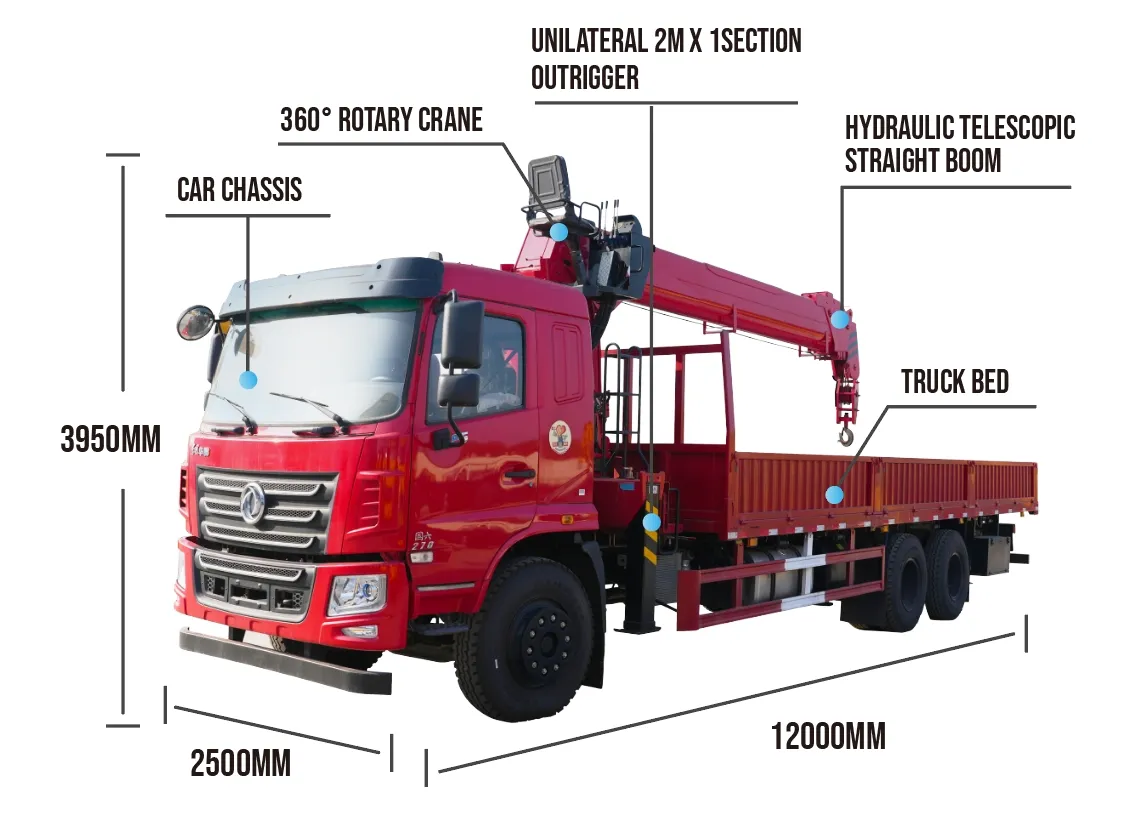

          Overall dimensions 12000*2500*3950mm
          Truck bed dimensions 8500*2400*550mm
          Wheelbase 5100+1350mm
          Max. weight (full load) 25000kg
          Truck mounted crane weight 16230kg
          Rated truck loading capacity 8575kg
          Machine width span 2.5m*5.8m
          CHASSIS
          Chassis model Valin
          Gearbox model Fast 8-speed transmission
          Engine Brand Yuchai
          Engine power 270hp/199kw
          Axle load 7000kg/18000kg
          Max. speed 90km/h
          Cooling system Air conditioner
          Tyre 1100R20-18PR
          Dual-pump confluence Aluminum hydraulic oil tank
          Chassis frame thickness 284mm （3-layers）
          LIFTING & SLEWING SYSTEM

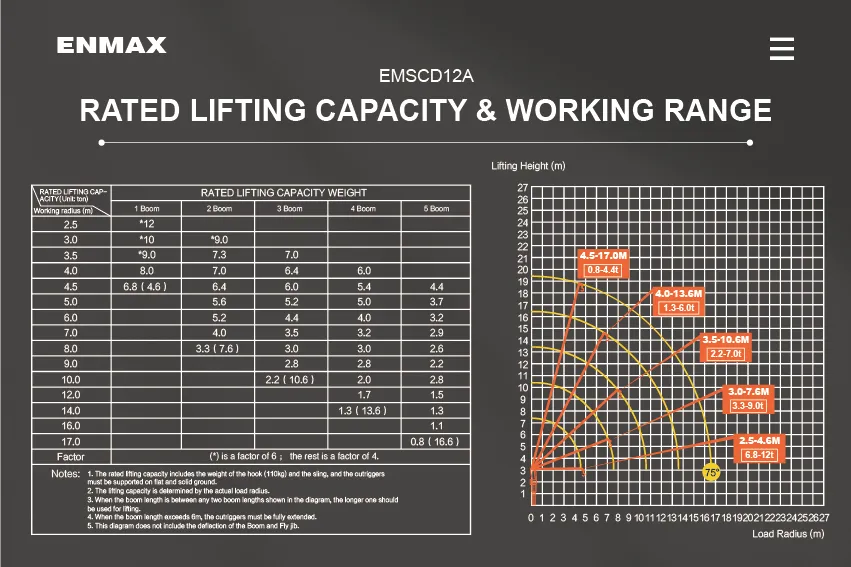

          Max. lifting weight 12000kg
          Max. lifting height 21.8m
          Max. elevation angle 0-75°
          Boom 5m x 4 sections (U-shape, 5.6-18.8m)
          Max. lifting torque 30000kg*m
          Hydraulic outrigger Automatic (2-section)
          Boom extension Return rope
          Boom extension method By double cylinders
          Slewing angle 360°
          Slewing speed 2.5r/min
