16 tons Dongfeng hydraulic truck crane

89000.00
127100.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

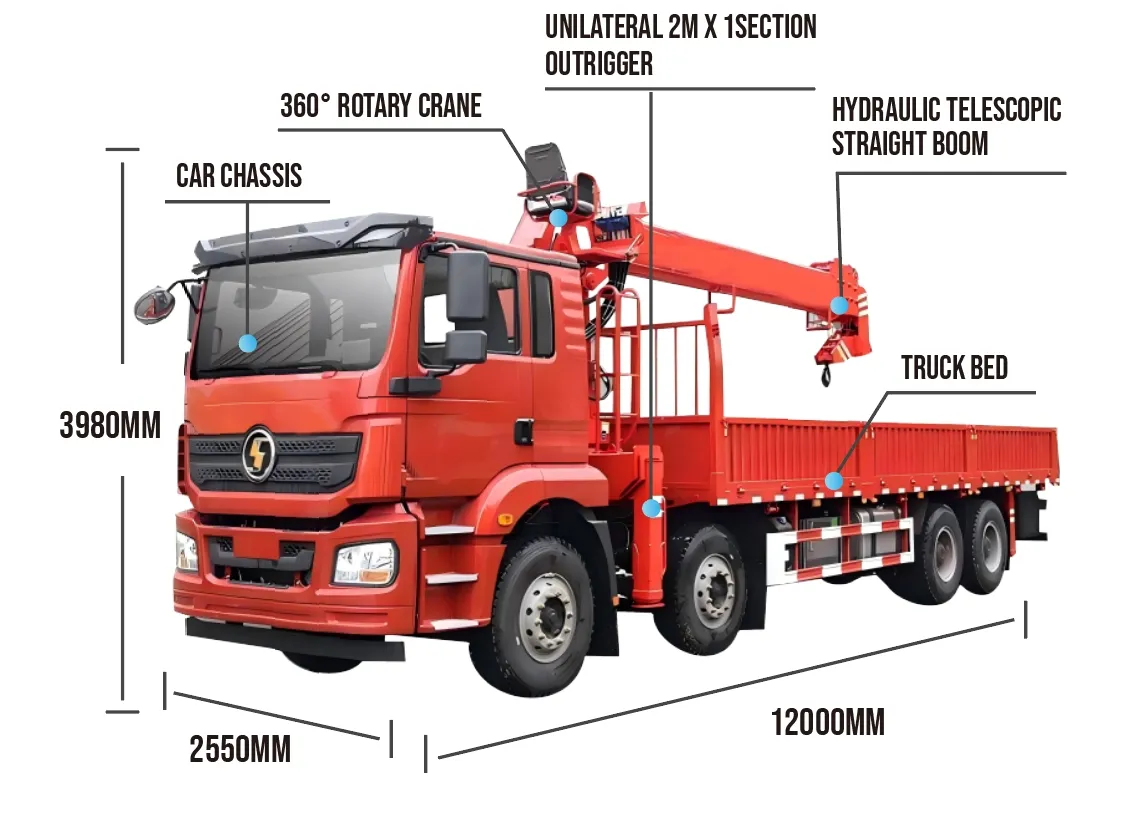

          Main parameters *16 tons Dongfeng hydraulic truck crane* Overall dimensions 12000*2550*3980mm

          MAIN PARAMETERS
          *16 tons Dongfeng hydraulic truck crane*
          Overall dimensions 12000*2550*3980mm
          Wheelbase 3500+4575mm
          Max. weight (full load) 31000kg
          Truck mounted crane weight 22150kg
          Rated truck loading capacity 8720kg
          Machine width span 2.5m*5.8m
          CHASSIS
          Chassis model Valin
          Gearbox model Fast 9-speed transmission
          Engine Brand Weichai
          Engine power 350hp/257kw
          Max. speed 90km/h
          Cooling system Air conditioner
          Tyre 1200R20-18PR
          Chassis frame thickness 300mm （3-layers）
          LIFTING & SLEWING SYSTEM

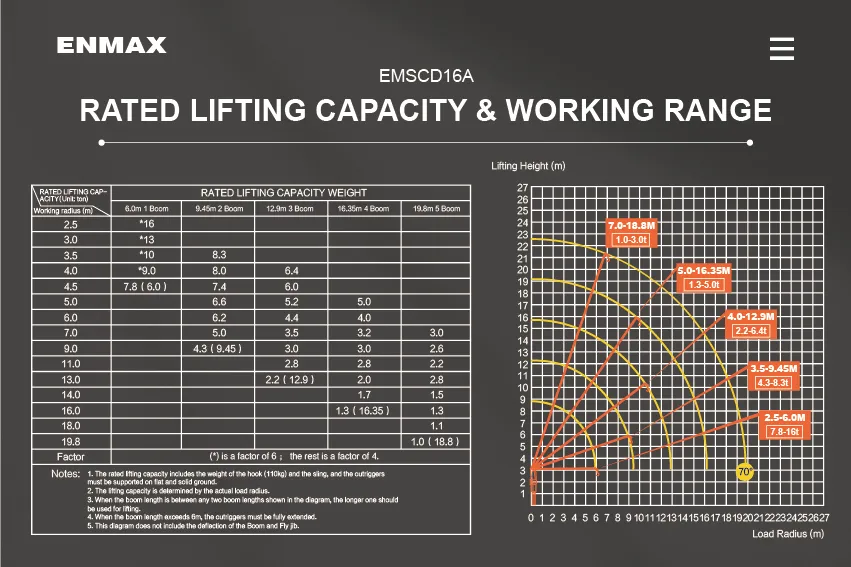

          Max. lifting weight 16000kg
          Max. lifting height 22.8m
          Slewing angle 360°
          Max. elevation angle 0-80°
          Boom 5.5m x 5 sections (U-shape, 5.8m-19.8m)
          Max. lifting torque 40000kg*m
          Boom extension method 2nd boom independent operation
          Hydraulic outrigger Automatic (2-section)
